Tutorial 3: Reduce Operator

In this tutorial, you will write a simple reduction operator using Compass DSL. You will learn about:

  • The basic builtin of max, vrpmax

  • How to write a max-reduction operator with 1D data

  • How to write a max-reduction operator with 2D data (alone row axis)

Basic Built-in

Before we write the reduction operator, let’s look at some basic built-in about the max operator.

  • max: compute the elementwise maximum of two vectors

    x: 1 2 3 4 5 6 7 8
    y: 5 5 5 5 5 5 5 5

  out = S.max(x, y)
  out: 5 5 5 5 5 6 7 8

  • vrpmax: compute the reduction maximum value of the vector

    x: 10 20 3 4 5 6 7 8

  out = S.vrpmax(x)
  out: 20 0 0 0 0 0 0 0

For addtional information, you can refer to vadd, vrpadd.

Writing a Max Reduction Operator with 1-Dimensional Data

We want to write a reduction operation to find the maximum element in a 1-Dimension array.

First, we need to consider the basic logic of how a reduction operates. Here is a conceptual pseudocode for a 1D max reduction:

def max_reduction_1d(input):
    max_val = input[0]
    for value in input:
        max_val = maximum(max_val, value)
    return max_val

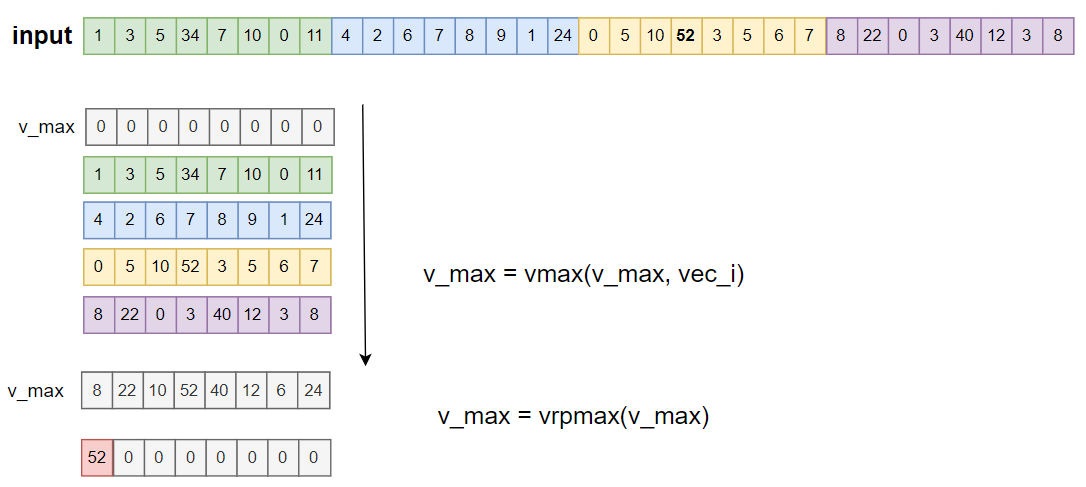

If we want to implement this with vector built-in, we can use max and vrpmax. The basic idea is:

  1. Convert the loop_n into n//VEC_LEN, for each loop, perform the vector maximum operation using max.

  2. Use vrpmax to compute the reductional maximum value of the vector computed by the previous step.

Here is the kernel code:

dtype = "uint32"
n = 8 * 4

@S.prim_func
def max_reduction_1d(a: S.ptr(dtype, "global"), b: S.ptr(dtype, "global")):
    v_max = S.uint32x8(0)  # for uint, init v_max with 0
    for vi in range(n // 8):
        va = S.vload(a + vi * 8)
        v_max = S.max(v_max, va)
    v_max = S.vrpmax(v_max)
    b[0] = v_max[0]

Writing a Max Reduction Operator with 2-Dimensional Data (Alone Row Axis)

In this section, we want to compute the maximum along the rows of a 2D array:

  • input: [batch, n]

  • output: [batch]

Here is a conceptual pseudocode for a 2D max reduction along rows:

def max_reduction_2d(input):
    result = []
    for row in input:
        max_val = row[0]
        for value in row:
            max_val = maximum(max_val, value)
        result.append(max_val)
    return result

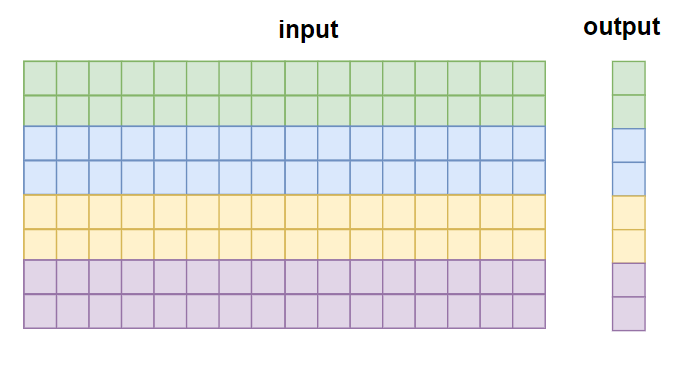

In this case, we can split the batch dimensions into NUM_TEC parts, and for each TEC, reuse the 1-Dimension logic.

Here is the kernel code:

batch = 8
NUM_TEC = 4
each_tec_batch = batch // NUM_TEC

@S.prim_func
def max_reduction_2d(a: S.ptr(dtype, "global"), b: S.ptr(dtype, "global")):
    # a [batch,n]
    # b [batch]
    for ti in S.tec_range(0, NUM_TEC):
        for loop_t in range(each_tec_batch):
            off_batch = ti * each_tec_batch + loop_t
            # 1d-max reduction
            v_max = S.uint32x8(0)
            for vi in range(n // 8):
                va = S.vload(a + off_batch * n + vi * 8)
                v_max = S.max(v_max, va)
            v_max = S.vrpmax(v_max)
            # store output
            b[off_batch] = v_max[0]

Complete Code

You can find the sample code in PYTHON_PACKAGE_PATH/tvm/aipu/samples/dsl/tutorial_3_reduce_op.py. The placeholder PYTHON_PACKAGE_PATH represents the location where you install the Compass DSL Python package, in general, it will be something like ~/.local/lib/python3.8/site-packages.
