Build and Run Workflow

This tutorial explains the build workflow of Compass DSL.

What is BuildManager?
What happens in lowering stage?
What happens in Codegen stage?
What is Builder?
What is Executor?

Here is a simple example that shows how to use API to build and run the primfunc.

import numpy as np
from tvm import aipu
from tvm.aipu import script as S

dtype = "int32"
n = 8

@S.prim_func
def func(a: S.ptr(dtype, "global"), b: S.ptr(dtype, "global")):
    va = S.vload(a)
    vb = S.vadd(va, 1)
    S.vstore(vb, b)


def test_func():
    bm = aipu.tir.BuildManager(target="X2_1204")  # What is BuildManager?
    ex = bm.build(func)                           # What is the build workflow?
    print(ex.c_code)                              # How Codegen works?

    a = np.array(list(range(n)), dtype=dtype)
    aipu_out = np.zeros((n,), dtype=dtype)
    ex(a, aipu_out)                            # What is Executor?
    print(a, aipu_out)


if __name__ == "__main__":
    test_func()

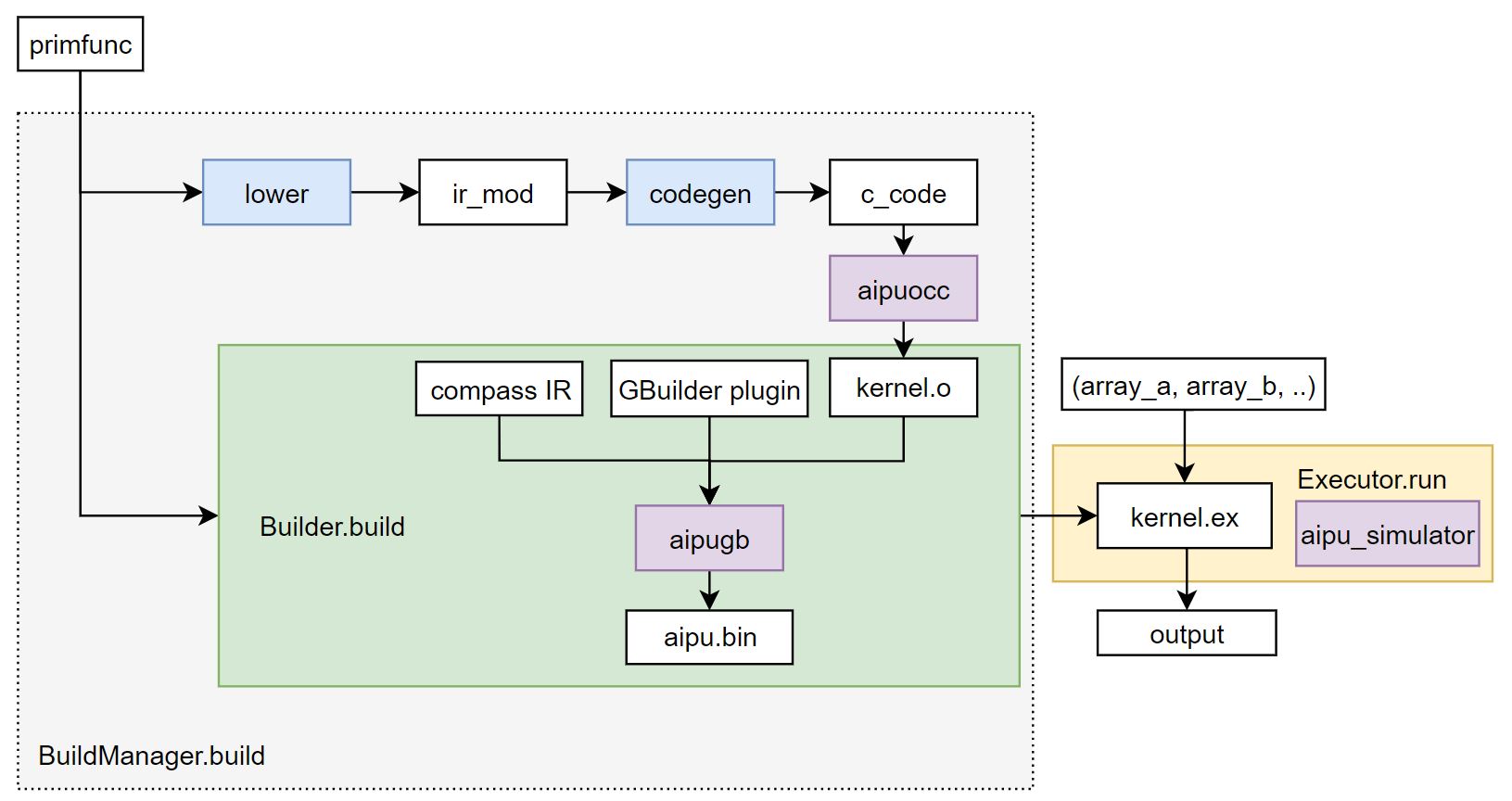

General Build Workflow

The general build workflow is:

The primfunc function will be first lowered to a IR_Module.
The IR_Module will go through the codegen and generate the c_code.
The AIPU compiler will compile the c_code into an object file.
The builder.build will generate the compass_ir, and gbuilder_plugin with the primfunc_info, then call the aipugb to generate the aipu.bin.
The executor function is a runtime-module, which can be called directly with runtime arguments, run and get the outputs.

BuildManager

bm = aipu.tir.BuildManager(target="X2_1204")

The AIPU buildmanger is a user interface for DSL program compilation.

To declare a buildmanger, the target is required. The default target is “X2_1204”.

You can then call the lower or build method of bm:

mod = bm.lower(primfunc)
ex = bm.build(primfunc)

Lower

lowering: transform a program to a lower-level representation that is closer to the target.

In the lower stage:

Turn the input (Union[tvm.te.Schedule, tvm.tir.PrimFunc, IRModule]) into IR_Module.
Run a sequence of passes(transformations). Many of the transformations in lowering stage are target independent.

It also allows to configure transformation parameters before applying transformations.

Codegen

In the codegen stage,

Apply some target dependent passes(transformations).
Call the Codegen Module to translate the IR_Module into string c_code.

Builder

The Builder is responsible for building the DSL program during execution.

In the Builder.build stage:

Generate the compass_ir with primfunc_info
Generate the gbuilder op_plugin
Call aipugb to generate aipu.bin
Return the runtime_module

Executor

Executor is responsible for executing the DSL program. The main feature of executor is that it has the ‘call’ method, which means that it is callable.

In the Executor.run stage:

Get the executable packed function.
Convert the runtime input arguments from np.array into tvm.nd.array.
Run the compiled DSL program.
Convert the outputs from tvm.nd.array to np.array.
